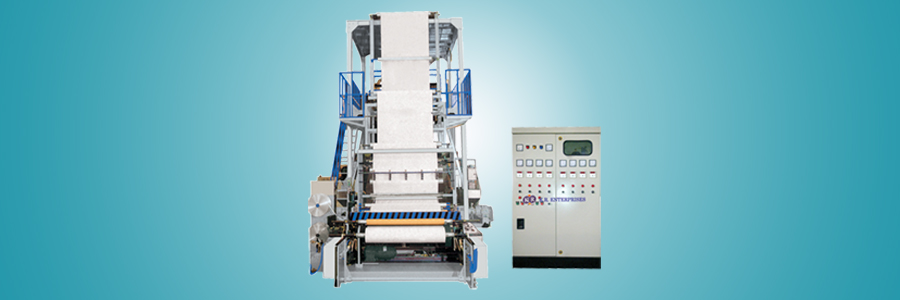

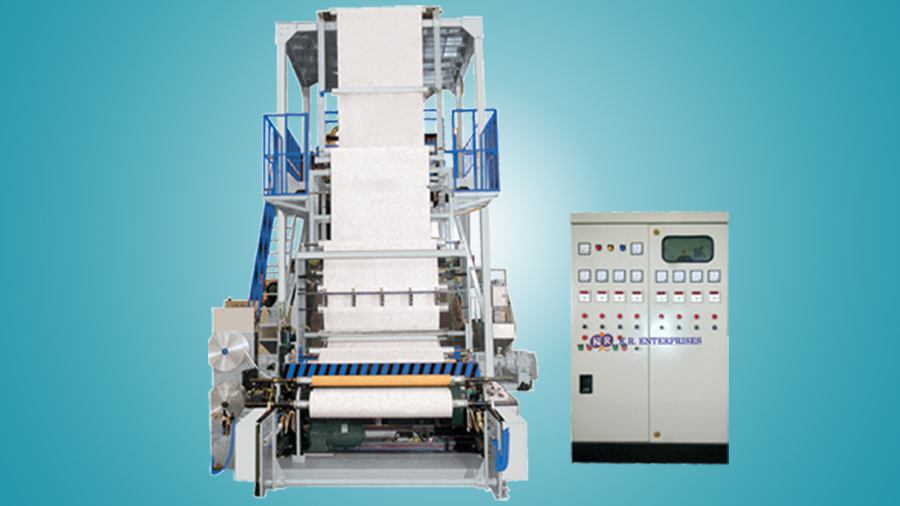

Products :: Hips Blown Sheet Plant ::
Back To Product Categories

View Large
Technical Specifications
   Plant Model    90MM    100MM
   Screw Dia    90mm    100mm
   Main Drive    25 HP    30HP
   Extrusion Capacity    100 Kg / hr    125 Kg / Hr
   Lay Flat Width (mm)    650mm    650mm
   Sheet Thickness    0.15mm to 0.70mm    0.15mm to 0.70mm
   Heating Load    12 Kw    14Kw
   Connected Load    37 HP    52 HP
   Overall Dimensions (LXWXH)    23"x13"x14"    19"x14"x14"
   Die    8"    12"
   Electricals & Electronics Items    Make - L&T    Make- L&T
   Main Drive    25 HP AC-Make-ABB    30 HP AC-Make-ABB
   Nip Roller Drive With Gearbox    2HP DC    5 HP DC
   Reduction Gear Box    Make - Helical    Make - Helical
