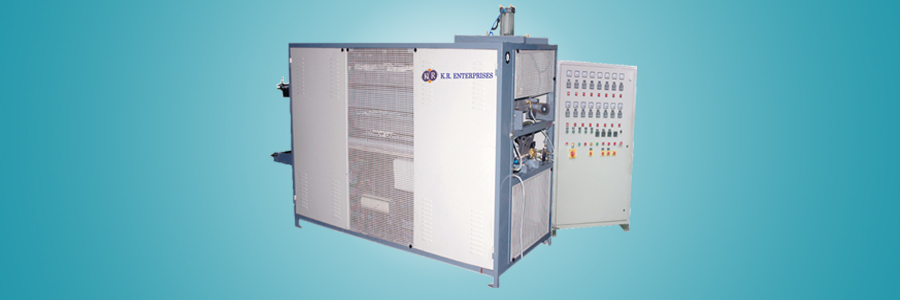

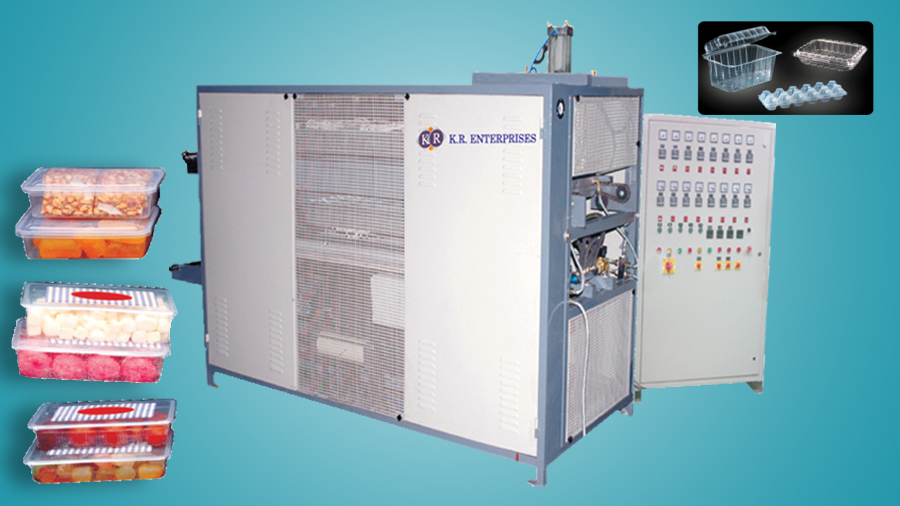

Products :: Automatic PP Vacuum Forming Machine ::
Back To Product Categories

View Large
Technical Specifications
   Forming Area    16"x20"
   Maximum Speed    20 Cycles Per Minute for PP/ For HIPS 30
   Control Pannel Dimensions    LXWXH- 34"x28"x60"
   Machine's Dimensions    LXWXH- 118"x85"x60"
   Approx. Weight    120KGS.
   Maxium Draw    75mm
   Sheet Thickness    0.12mm to 1.35mm
   Material Used    HIPS, PVC, PP
   Electric Load Connected    42 KW.
   Electric Load Running    30 KW.
   Heating Element    Ceramic (Make- Hi-Heat England)
   Pneumatic Cylinder & Value    Make - Festo / Janatics
   Vacuum Pump    500 LMV Vacuum Pump with tank
   Heater Moving    Pneumatic Cylinder
   Chain    Make - Dimond
   Electricals & Electronics Item's    Make - L & T
   Motor 2HP    Make - Crompton
   Note: Require (5HP) Air Compressor, not supply with machine.
Order Now
