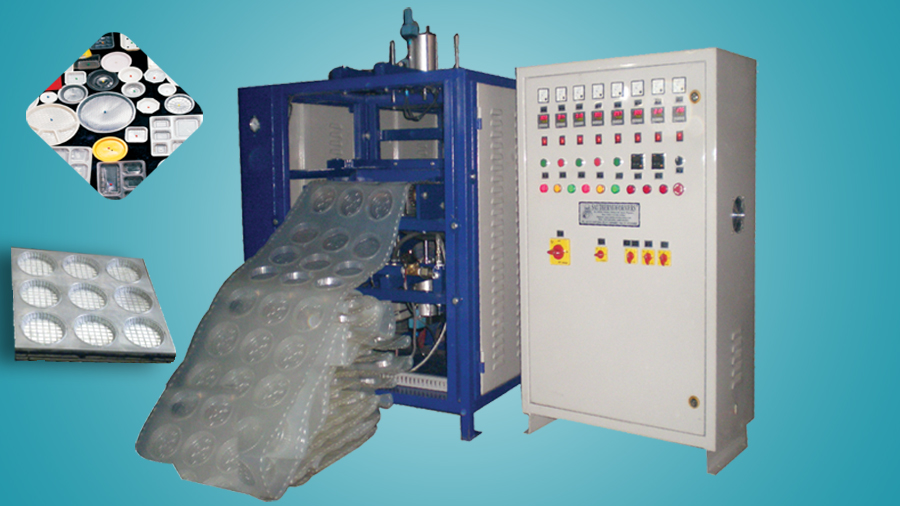

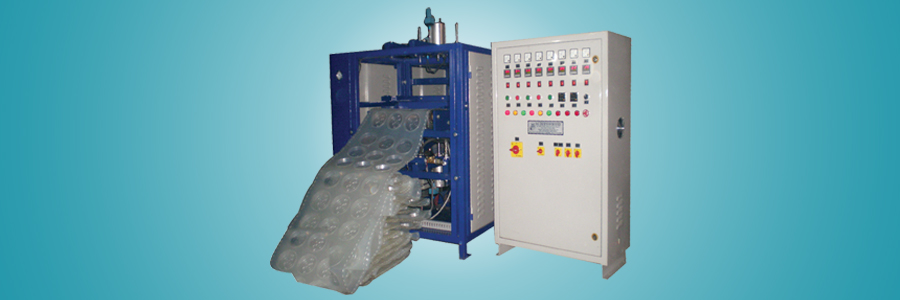

Products :: Automatic Vacuum Forming Machine ::
Back To Product Categories

View Large
Technical Specifications
   Forming Area    500mm x 500mm    500mm x 600mm    600mm x 600mm
   Maximum Speed    15 to 18 Cycle Perminute    18 to 20 Cycle Perminute    20 to 22 Cycle Perminute
   Control Pannel Dimensions    32"x16"x50" LXWXH    LXWXH 36"x19"x52"    LXWXH 36"x19"x55"
   Machine's Dimensions    LXWXH 90"x70"x60"    LXWXH 110"x91"68"    LXWXH 110"x82"x68"
   Approx. Weight    750Kgs    850Kgs    1000Kgs
   Sheet Thickness    0-12mm to 80 mm    0-12mm to 90mm    0.15 to 100mm for HIPS & PVC
Material Used    For HIPS & PVC    For HIPS & PVC PET    HIPS PVC PET
   Electric Load    9 KW    10KW    16.5KW
   Heating Element    Ceramic (Make Hi-Heat England)    Ceramic (Make HI-Heat    England)    Ceramic (Make HI-Heat England)
   Pneumatic Cylinder & Value    Make- Festo/Janatics    Make- Festo/Janatics    Make- Festo/Janatics
   Heating Control    PID Control    PID Control    PID Control
   Heater Moving    Fixed    Pneumatic Cylinder    Pneumatic Cylinder
   Electricals & Electronics Item's    Make L&T    Make L&T    Make L&T
   Machine Frame & Pars, Control    Pannal    Power Coated    Power Coated    Power Coated
Note: Require (5HP) Air Compressor, not supply with machine.
